Descriere

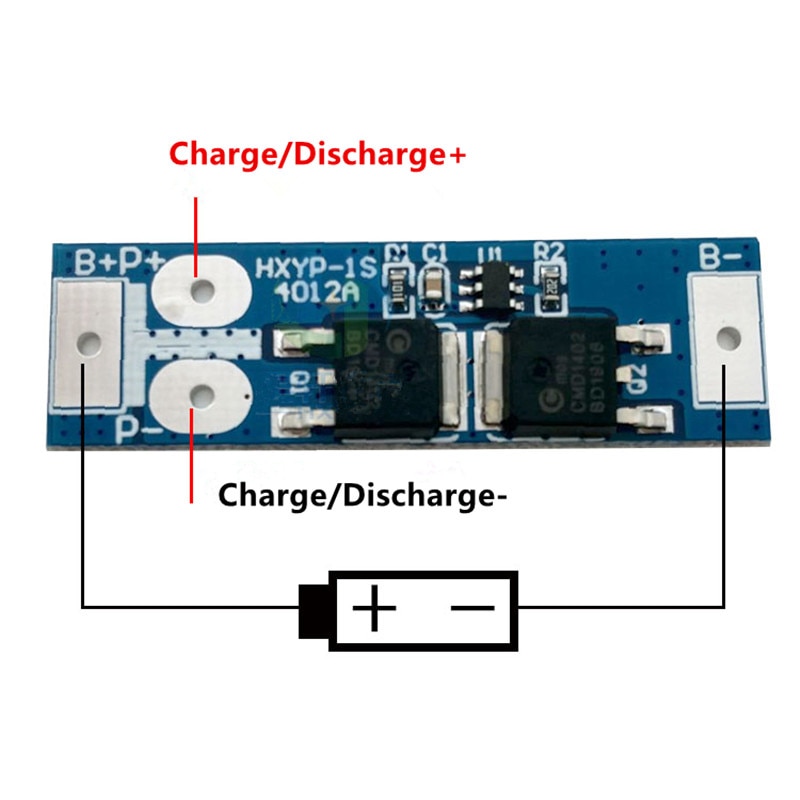

Modul protectie incarcare 1x 18650 BMS 1S.
Tensiune maxima de alimenatre : 4.25-4.35V ± 0.05V
Dimensiuni: 40*12*3.5mm
Tensiune minima de descarcare: 2.5-3.0V ± 0.05V
Curent continuu maxim de incarcare / descarcare: 12A
Temperatura de lucru: -40 – +50 ℃
– protectie la scurtcircuit si supra-curent pt 1×18650
Tensiune de incarcare: 4.2V DC.
1S 12A 3.7V
Size: 40*12*3.5mm
Maximum operating current: 12A
Upper limit instantaneous current: 17A
Overcharge voltage range: 4.28±0.05V
Over-discharge voltage range: 2.4V±0.05V
Charging voltage: 4.2V
Quiescent current: <30uA
Short circuit protection: can protect, delay self-recovery
